Electric Crane for Plastics Injection Mold
Features & Benefits:

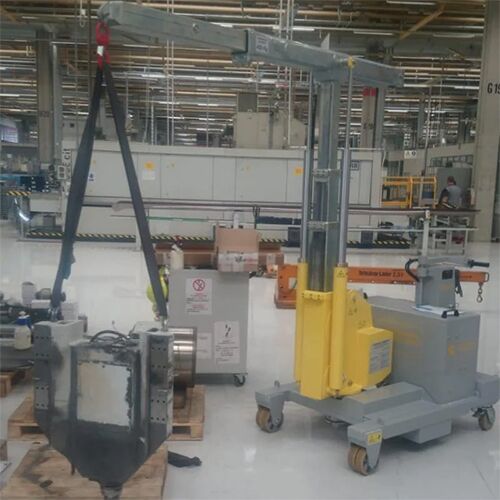

The GB 500 TR Vertical is the mold lifting machine designed to lift and carry loads up to 500 kg. Ideal for use in plastics, mold lifting and industrial maintenance applications.
The small size of the GB 500 TR Vertical crane makes it possible to achieve a high level of performance in small spaces.
Technical Specifications:
| Maximum load capacity | 500 Kg |
| Standard minimum hook’s height from ground | 950 mm |
| Standard maximum hook’s height from ground | 2,200 mm |
| Possibility of extension in height up to (optional) | – |
| Standard telescopic extension | 1,960 mm |
| Capacity at max. standard telescopic extension | 280 Kg |
| Telescopic extension up to (optional) | 3,000 mm |
| Capacity at max. telescopic extension (point 7) | 180 Kg |
| Rotation (optional): | 60 ° – 150 ° -270 ° |
| Wheelbase: | 1,200 mm |
| Dimensions – length | 1,550 mm |
| Dimensions – width | 950 mm |
| Dimensions – height | 1,600 mm |
| Adjustable speed from / to: | From 0 to 40 m / min |
| Maximum surmountable slope (unloaded) | 8% |
| Maximum surmountable slope (loaded) | 3% |
| Front wheels | 4 x Ø 160 x 60 mm |
| Rear wheels | 1 x Ø 160 x 80 mm |
| Wheel material | Polyurethane |
| Driving traction | REAR WHEEL |
| Total weight | 1,350 Kg |
| Electric motor power | 1.5 KW / 12 V. |
| Hardened battery (standard) | 200 Ah / 12 V |
| Battery charger on board | 110/240 V -50/60 Hz |
| Lead acid battery | – |
| Gel battery | ● |
| Longer battery life | ○ |
| Proportional control of all movements | ● |
| Certification according to 2006/42 CE standard | ● |
| Production according to UL508 A standard | ● |
| Certification (from third party company) standard UL508 A | ○ |
| Hydraulic traction control | ● |
| Automatic braking system | ● |
| Anti-tipping safety system | ● |
| Pressure control safety valves on each movement | ● |
| Electrical emergency safety devices | ● |
| Winch (lifting capacity on request) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User manual and technical documentation | ● |
| Possibility to do all movements with maximum load | ● |
