Electric Crane for Plastics Injection Mold
Features & Benefits:

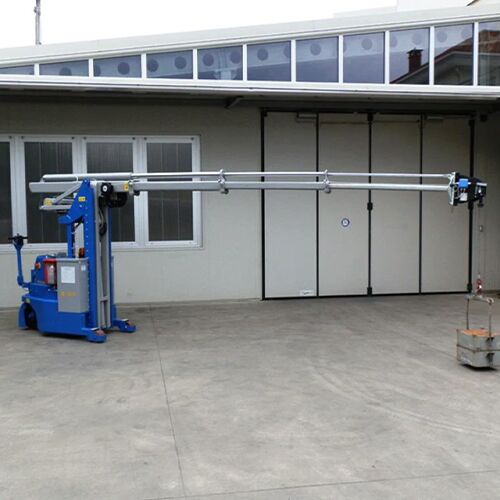

The MINIDREL 20SL HG is the mold lifting machine designed to lift and carry a load of up to 2,000 kg. Ideal for use in the plastic materials, mold lifting sector and for industrial maintenance applications.
The small size of the MINIDREL 20SL HG crane allows to achieve a high degree of performance in small spaces.
Technical Specifications:
| Hook capacity | 2.000 Kg |
| Height min. of elevation hook | 1,800 mm |
| Height max. of elevation hook | 3,600 mm |
| Possibility of extension in height up to (optional) | – |
| Standard telescopic extension | 1,500 mm |
| Capacity at max. standard telescopic extension | 1.000 Kg |
| Telescopic extension up to (optional) | 5,000 mm |
| Capacity at max. telescopic extension (point 7) | 225 Kg |
| Rotation: | – |
| Wheelbase: | 1,500 mm |
| Dimensions – length | 1,860 mm |
| Dimensions – width | 950 mm |
| Dimensions – height | 2,320 mm |
| Movement speed variable from: | From 0 to 60 m / min |
| Negotiable slope | 8% |
| Gradeability at full load | 3% |
| Front wheels | 2 x Ø 160 x 80 mm |
| Rear wheels | 1 x Ø 450 x 110 mm |
| Wheel material | Polyurethane |
| Driving traction | REAR WHEEL |
| Total weight | 3,600 Kg |
| Electric motor power | 3.0 KW / 24 cc. |
| Traction battery | 360 Ah / 24 V |
| Charger | 110/240 V -50/60 Hz |
| Acid battery | – |
| GEL battery | ● |
| Longer battery life | ○ |
| Proportional control of all movements | ● |
| Certification according to 2006/42 CE standard | ● |
| Production according to UL508 A standard | ● |
| Certification (from third party company) standard UL508 A | ○ |
| Hydraulic traction control | ● |
| Automatic braking system | ● |
| Anti-tipping safety system | ● |
| Pressure control safety valves | ● |
| Electrical emergency safety devices | ● |
| Winch (lifting capacity on request) | ○ |
| Wireless remote control | ○ |
| User manual and technical documentation | ● |
| Possibility to carry out all movements with the max. Load | ● |
