Reduce Labor, Optimize Performance & Improve Reliability with Crizaf Conveyors

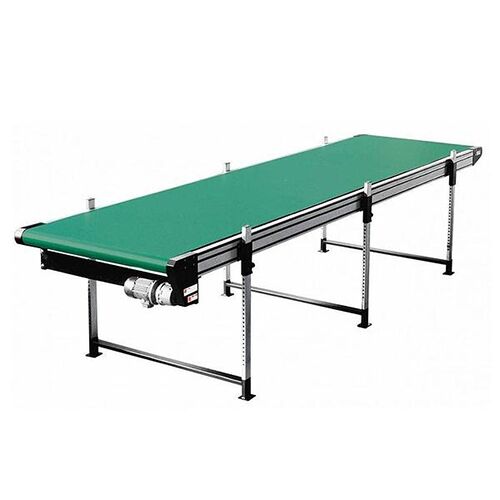

Heavy Duty Linear/Incline Conveyor with PU/PVC Belt
Heavy-duty frame conveyors with PU/PVC belt.
Technical Specifications:
| Dimensions | PO: from 3000mm / to 10000mm (50mm increments) UT: from 500mm / to 1500mm (50mm increments) |
| Frame | anodised extruded aluminium profile RAL 9005 black painted steel head supports |
| Sidewalls | anodised extruded aluminium profile |
| Stand support | RAL 9005 black painted steel hinges and clamps zinc plated steel legs castors with brakes / levelling elements |
| Belt | dark green PU PU cleats (only model C1250) max temperature resistance 80°C in continuous |
| Drive | chain (left side) 3 Phase – 400Vac/50Hz – 0.25kW – asynchronous motor |
| Speed | 4,1 m/min |
| Control | Start – Stop |
