The New Standard in Injection Molding
Features & Benefits:

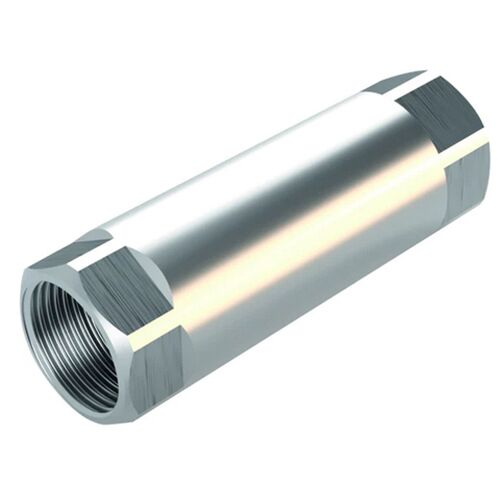

Temperature filters are specially designed for cooling channels or core cooling channels. The filter cartridge removes dirt particles, rust, or scale deposits.
The temperature filter is made of stainless steel and brass.
Easy maintenance of the filter:
- Separate the 2 housing parts
- Clean filter in an ultrasonic bath
- Re-assemble the 2 housing parts
- Pressure loss: 10-15%
- Operating temperature: Max 140°C
- Max pressure: 8 bar
- Pore size (filter): 100 µm
- Material: Stainless steel
- Seals: Viton (FKM)
Technical Specifications:
| Item No. | Filter Area mm2 | L | S | Diameter | 2 | G | |
| ILF-R3/4 | 2500 | 96,5 | 29 | 32 | 29 | 3/4 BSP | |
