New industrial braided push-on hose in injection molding industry to combine non-conductive, high pressure at 400 psi, high temperature, MSHA certified in one hose

Technical Documents

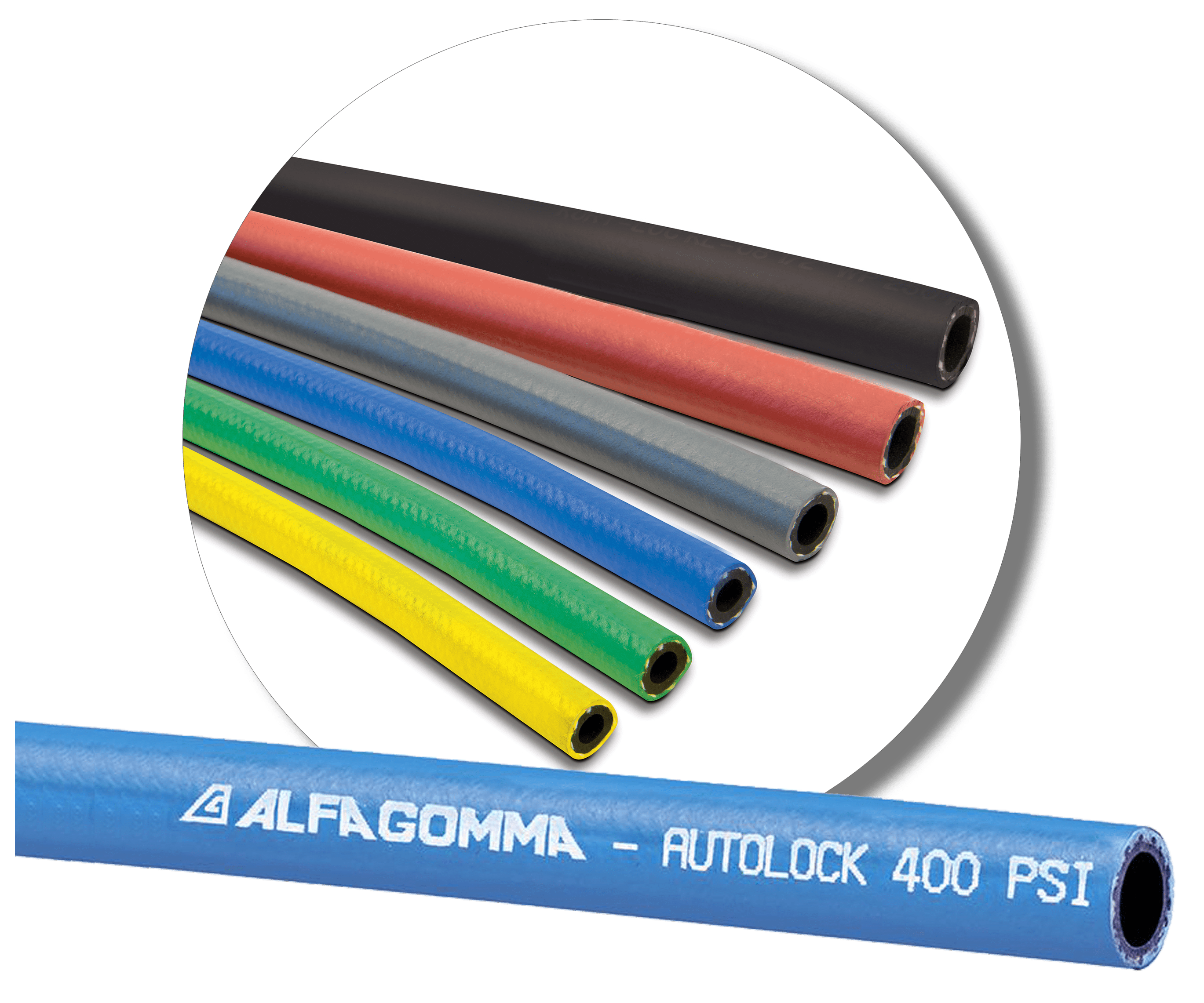

Alfagomma AL Autolock Braided Push-On Hose

Item #: AUTOLOCK-MAIN

From $1,034.00

Reset

Alfagomma Logo

FEATURES & BENEFITS

  • Push-On Assembly: Easy to connect, no clamps or tools required
  • Flame Resistance: MSHA-approved covered for safety in hazardous environments (No. IC-152/21)
  • Durable Construction: Long-lasting, resistant to wear, ozone, and hydrocarbons
  • Oil-Resistant Tube: Meets APRM Class A (High Oil Resistance) Rating, for use with gasoline, diesel, biodiesel and kerosene
  • Non-conductive Tube and Cover^: Helps protect user from shock when used near high-voltage sources
  • Mandrel-Built Braided Construction Quality:
    • Stable under pressure with minimal expansion and twisting
    • Better kink resistance and dimensional consistency
    • Superior pressure tolerance compared to competitors
    • Highly flexible design, works well in tight spaces

    GENERAL APPLICATIONS

    • Air tools
    • Pneumatic and low-pressure hydraulic systems
    • Lubricating oils, diesel fuel and antifreeze solutions
    • Water lines for molding and blow-forming machines
    • Robotic welders
    • Chemical and paper industries
    • Automation and machine tools

    CONSTRUCTION

    • Tube: Oil-resistant synthetic rubber (ARPM Class A)
    • Reinforcement: High-strength textile braid for secure fitting retention
    • Cover: Abrasion, ozone, and flame resistant cover (MSHA-approved)

    SERVICE TEMPERATURE RANGE

    • -40° F (-40° C) to +212° F (+100° C)*
    • -40° F (-40° C) to +160° F (+70° C) for air transfer*
    *Actual service temperature range is applicaion dependent.

    PACKAGING

    • Reels of various lengths (see chart on page 2 in spec sheet)
    • Max two or three** pieces per reel (Min piece length 50-ft.)
    **Max three pieces for 1/4″ through 1/2″ ID, max two pieces for 5/8″ through 1″ ID
    ^Meets a minimum of 1,000,000 ohms per inch resistance when tested with a 1,000-volt D.C. megger.

    CHECK OUT OUR PUSH-ON FITTINGS

Additional information

Weight Please select an option above.
Size

AL-04BK [1/4" ID x 600 feet, BLACK], AL-05BK [5/16" ID x 600 feet, BLACK], AL-06BK [3/8" ID x 600 feet, BLACK], AL-08BK [1/2" ID x 550 feet, BLACK], AL-10BK [5/8" ID x 350 feet, BLACK], AL-12BK [3/4" ID x 350 feet, BLACK], AL-16BK [1" ID x 200 feet, BLACK], AL-04BU [1/4" ID x 600 feet, BLUE], AL-06BU [3/8" ID x 600 feet, BLUE], AL-08BU [1/2" ID x 550 feet, BLUE], AL-10BU [5/8" ID x 350 feet, BLUE], AL-12BU [3/4" ID x 350 feet, BLUE], AL-16BU [1" ID x 200 feet, BLUE], AL-04GR [1/4" ID x 600 feet, GREEN], AL-06GR [3/8" ID x 600 feet, GREEN], AL-08GR [1/2" ID x 550 feet, GREEN], AL-10GR [5/8" ID x 350 feet, GREEN], AL-12GR [3/4" ID x 350 feet, GREEN], AL-04GY [1/4" ID x 600 feet, GRAY], AL-06GY [3/8" ID x 600 feet, GRAY], AL-08GY [1/2" ID x 550 feet, GRAY], AL-10GY [5/8" ID x 350 feet, GRAY], AL-12GY [3/4" ID x 350 feet, GRAY], AL-04RD [1/4" ID x 600 feet, RED], AL-06RD [3/8" ID x 600 feet, RED], AL-08RD [1/2" ID x 550 feet, RED], AL-10RD [5/8" ID x 350 feet, RED], AL-12RD [3/4" ID x 350 feet, RED], AL-16RD [1" ID x 200 feet, RED], AL-04YL [1/4" ID x 600 feet, YELLOW], AL-06YL [3/8" ID x 600 feet, YELLOW], AL-08YL [1/2" ID x 550 feet, YELLOW], AL-10YL [5/8" ID x 350 feet, YELLOW], AL-12YL [3/4" ID x 350 feet, YELLOW]
SKU AL-04BK
SKU AL-04BU
SKU AL-04GR
SKU AL-04GY
SKU AL-04RD
SKU AL-04YL
SKU AL-05BK
SKU AL-06BK
SKU AL-06BU
SKU AL-06GR
SKU AL-06GY
SKU AL-06RD
SKU AL-06YL
SKU AL-08BK
SKU AL-08BU
SKU AL-08GR
SKU AL-08GY
SKU AL-08RD
SKU AL-08YL
SKU AL-10BK
SKU AL-10BU
SKU AL-10GR
SKU AL-10GY
SKU AL-10RD
SKU AL-10YL
SKU AL-12BK
SKU AL-12BU
SKU AL-12GR
SKU AL-12GY
SKU AL-12RD
SKU AL-12YL
SKU AL-16BK
SKU AL-16BU
SKU AL-16RD

Click here for more information about shipping
