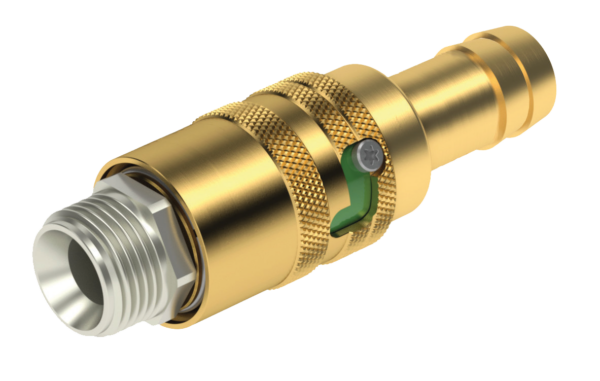

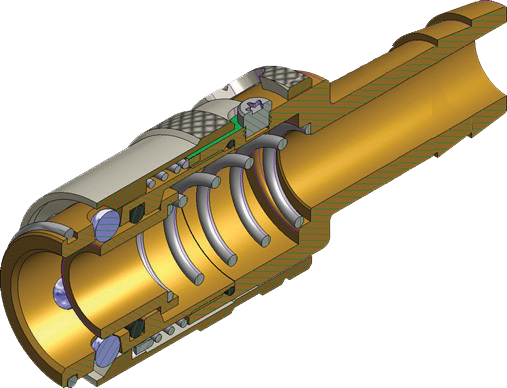

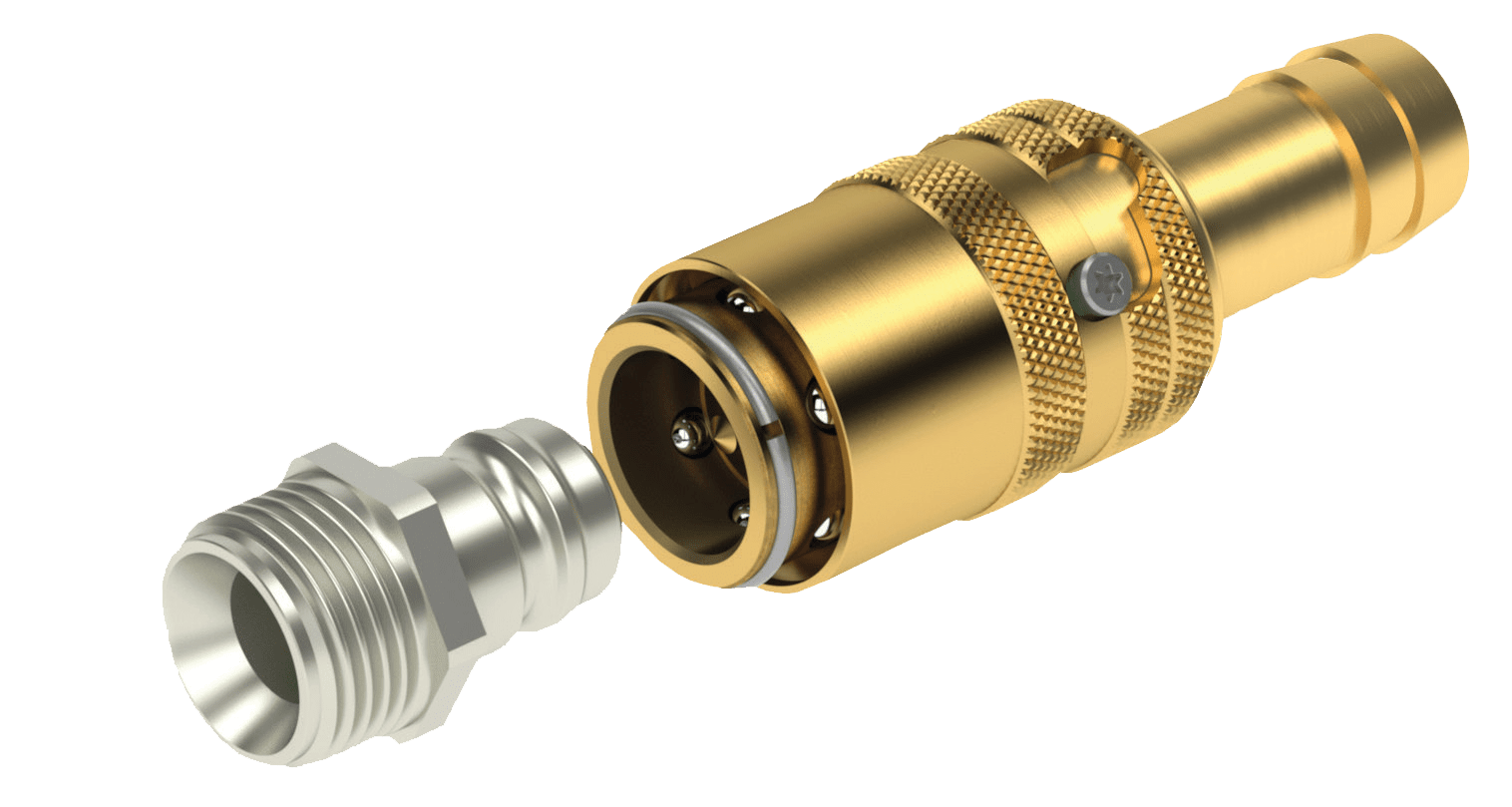

The patented Mouldpro quick connect safety coupling features and automatic locking mechanism that offers an effective solution for accidental disconnection and unlocking. The coupling is designed for use with agressive media such as mold cooling applications with hot and cold water, as well as thermal oil, between -4° F (-20° C) and +392° F (+200° C).
FEATURES & BENEFITS
- Automatic locking feature to prevent accidental disconnection and unlocking
- Temperature range of -4° F (-20° C) and +356° F (+180° C) for water and up to +392° F (+200° C) for oil
- FKM O-ring sealing on the connector ideal for mold cooling circuits, especially for high temperatures

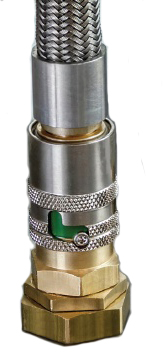

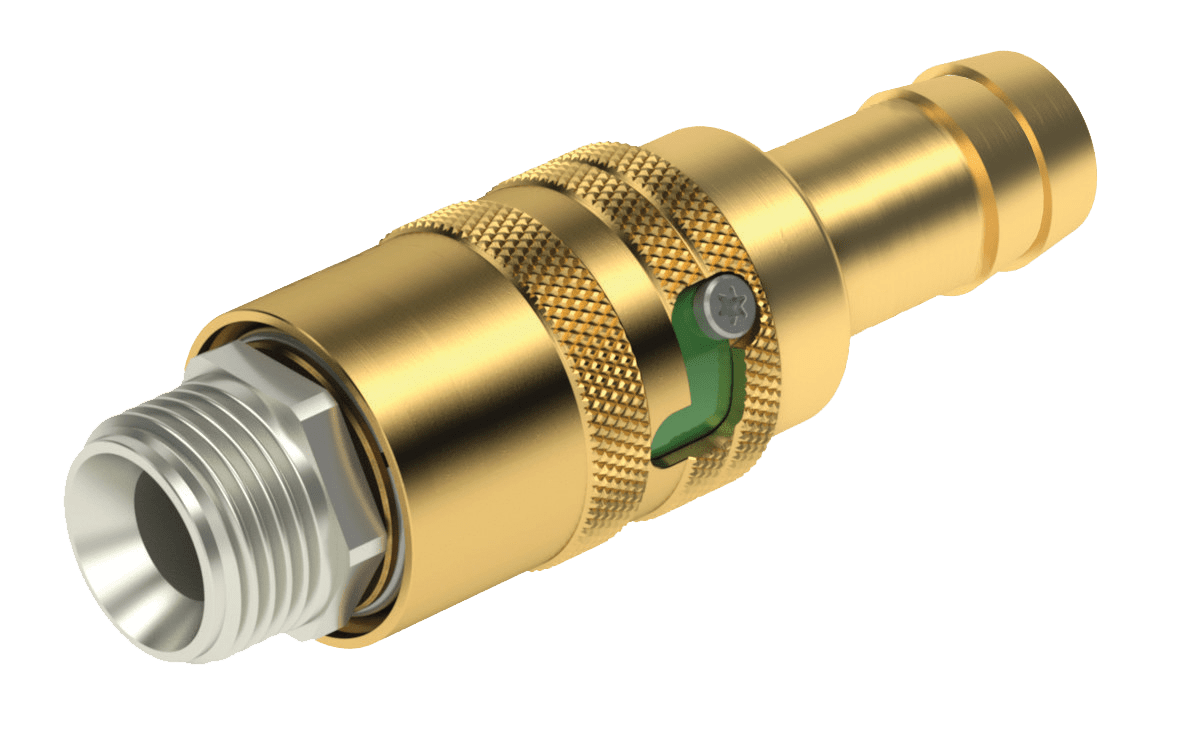

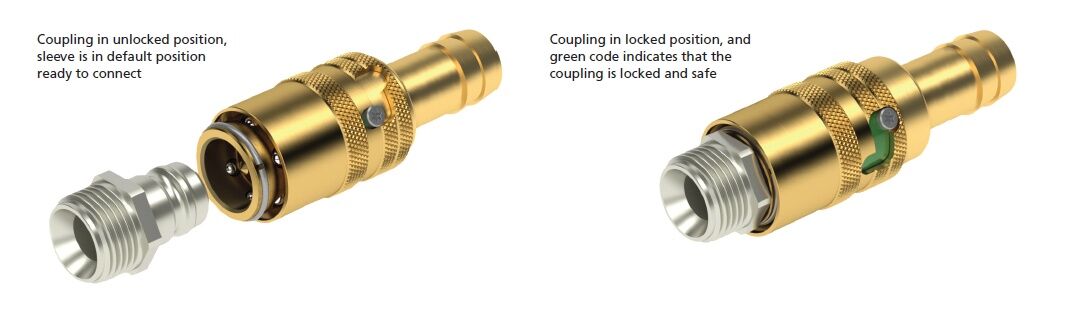

- Color coding on the locking sleeve clearly indicates a correct and secure connection

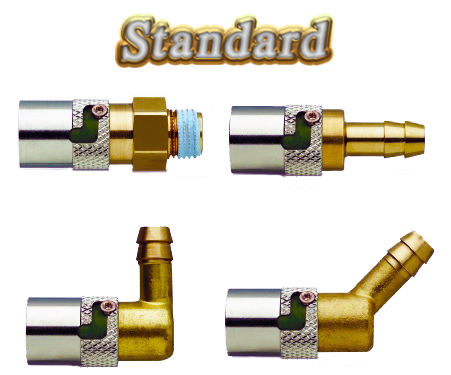

- Available in 200 (¼”) and 300 (⅜”) Series

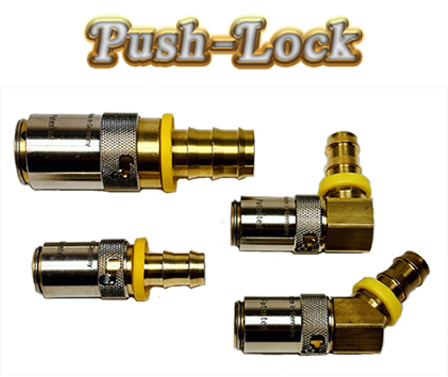

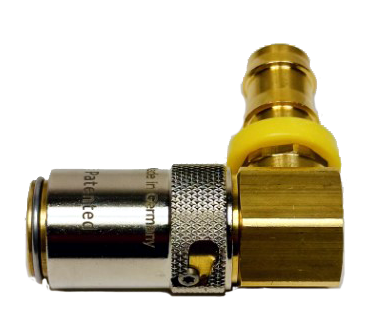

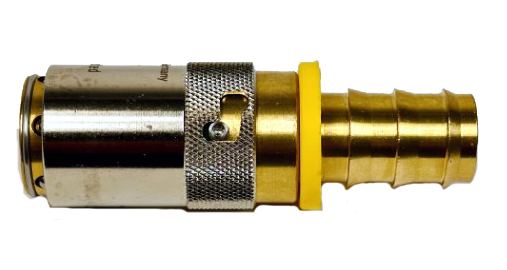

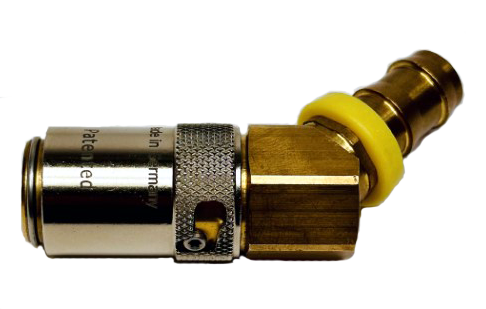

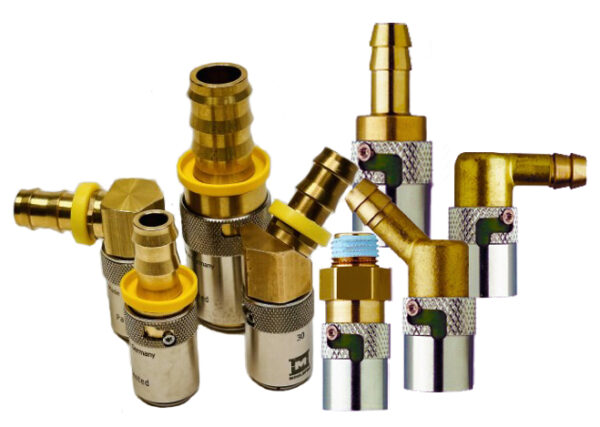

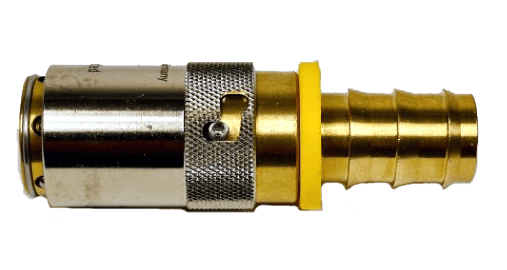

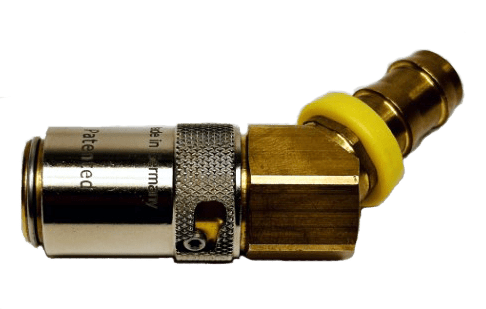

- Available with ⅜” (10mm) and ½” (13mm) straight, 45° and 90° hose Barbs or G¼”, G⅜” or G½” male threads
- Compatible with all major mold connection systems
- All brass and stainless steel construction
